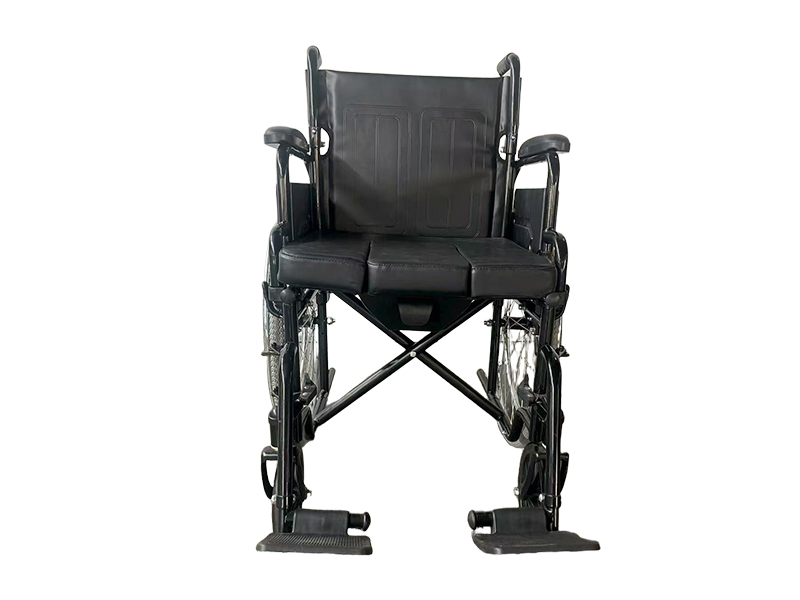

1、 Model: KR011A Iron Wheelchair

2、 Technical parameters

1.18 "model, 18" single center fork. Can be folded.

2. Seat width * Seat depth * Seat height 470 * 460 * 550mm

3. Maximum load-bearing capacity of 100kg

4. Dimensions: Length * Width * Height 1040 * 630 * 930mm

2、 Surface treatment

1. Frame+secondary armrest tube+movable legs+single fork spray painted high gloss black.

2. The sliding rod is chrome plated, the inner sleeve is galvanized, the pedal support is electrophoretic black, and the locking clamp is spray painted black.

3、 Configuration Description

1. The second level folding armrest, movable foot, and backrest can be folded back.

2. 8 "front fork spray black, 8 * 1 front small wheel (black 8-fork PP spokes+gray PVC outer tire)

3. 24 * 1-3/8 steel wire rear wheels, gray patterned inflatable tires. 20 "electroplated handwheel.

4. Equipped with anti roll wheel 40 type

5. Seat cushion part:

① Soft seat cushion+seat cushion core pulling: black leather surface+sponge+wooden board δ 10

② Seat cushion bottom frame: connecting strip+toilet bowl guide rail spray painted high gloss black

③ PP black toilet bowl

6.18 "black leather back pad+leg straps. 140 type black leather short armrest pad, black ABS short protective skirt board

7. K4 brake, electrophoretic black. 16 "black ABS star shaped pedal.

8. All plastic parts are black

9. One hand tool wrench

4、 Packaging parameters

1. Net weight 22kg/unit

2. Outer box 850 * 390 * 930, 1 unit/box. Net weight 22kg, gross weight 25kg
