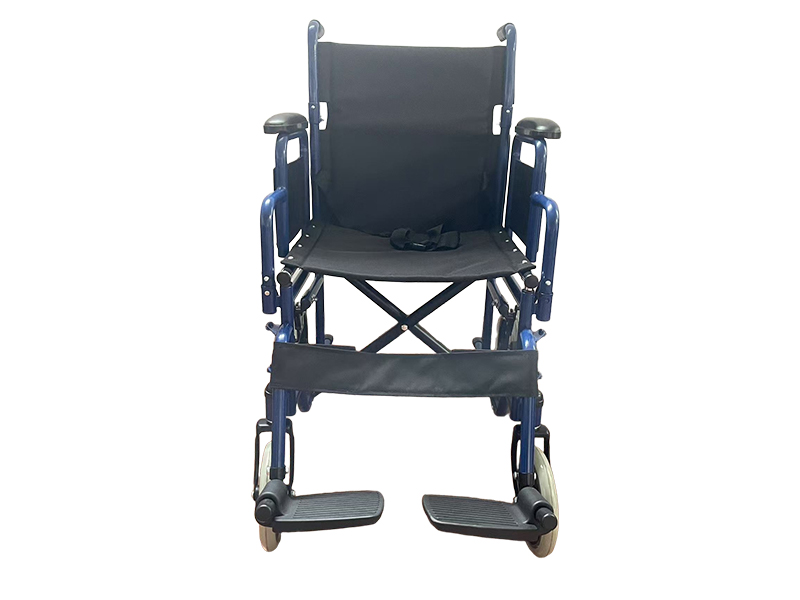

1、 Model: KR030C Iron Wheelchair

2、 Technical parameters

1.18 "model, 18" single center fork. Can be folded.

2. Seat width * Seat depth * Seat height 470 * 420 * 500mm

3. Maximum load-bearing capacity of 100kg

4. Dimensions: Length * Width * Height 920 * 620 * 930mm

2、 Surface treatment

1. Frame+secondary armrest tube+movable leg spray painted in dark blue (color card number 5005), single middle fork spray painted in high gloss black.

2. The sliding rod is chrome plated, the inner sleeve is galvanized, the pedal support is electrophoretic black, and the locking clamp is spray painted black.

3、 Configuration Description

1. The second level detachable armrest, movable foot, and backrest can be folded back.

2. 8 "front fork spray black, 8 * 1 front small wheel (black 8-fork PP spokes+gray PVC outer tire)

3. Diameter 300 * 45 rear wheel (black 6-spoke PP spokes+gray PU outer tire)

4. 18 "650D black Oxford cloth seat cushion+back cushion+seat belt+leg strap. 140 type black leather short armrest pad, black ABS short protective skirt board

5. K009 brake, electrophoretic black. 16 "black ABS star shaped pedal.

6. All plastic parts are black

7. One hand tool wrench

4、 Packaging parameters

1. Net weight 15kg/set

2. Outer box 730 * 260 * 940, 1 unit/box. Net weight 15kg, gross weight 18kg
