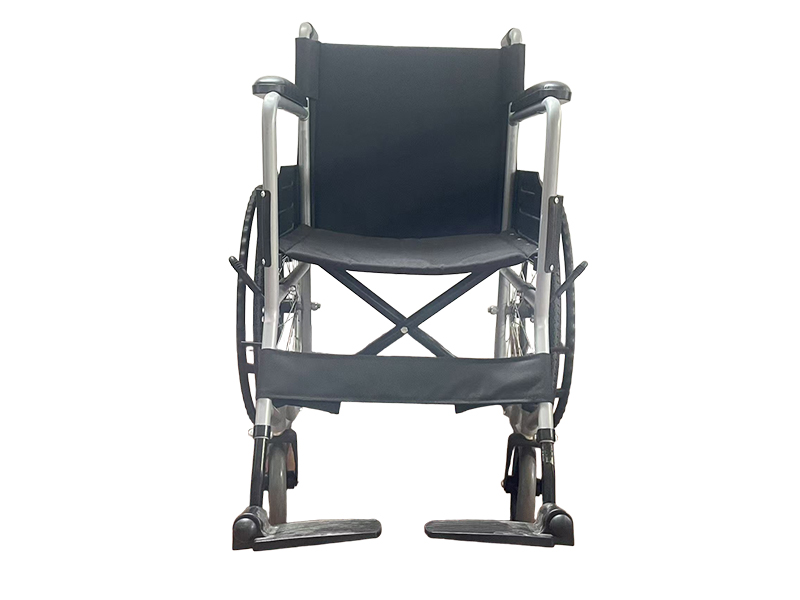

1、 Model: KR007 Iron Wheelchair

2、 Technical parameters

1.18 "model, 18" single center fork. Can be folded.

2. Seat width * Seat depth * Seat height 410 * 420 * 500mm

3. Maximum load-bearing capacity of 100kg

4. Dimensions: Length * Width * Height 910 * 630 * 880mm

2、 Surface treatment

1. The frame is sprayed with aluminum silver gray and the single center fork is sprayed with high gloss black

2. The inner sleeve is galvanized, the pedal support is electrophoretic black, and the locking clamp is spray painted black.

3、 Configuration Description

1. Secure hands and feet.

2. 7 "front fork spray black, 7 * 1 front small wheel (black 5-spoke PP spokes+gray PVC outer tire)

3. 24 * 1-3/8 steel wire rear wheels, black patterned hard tires. 20 "black ABS waveform handwheel.

4. Equipped with anti roll wheel 40 type

5. 18 "650D black Oxford cloth cushion+back cushion+leg strap, 227 type black leather long armrest pad, black ABS long protective skirt board

6. K4 brake, electrophoretic black. 16 "black ABS strip pedal.

7. All plastic parts are black

8. One hand tool wrench

4、 Packaging parameters

1. Net weight 14.2kg/set

2. Outer box 930 * 290 * 870, 1 unit/box. Net weight 14.2kg, gross weight 19.5kg
