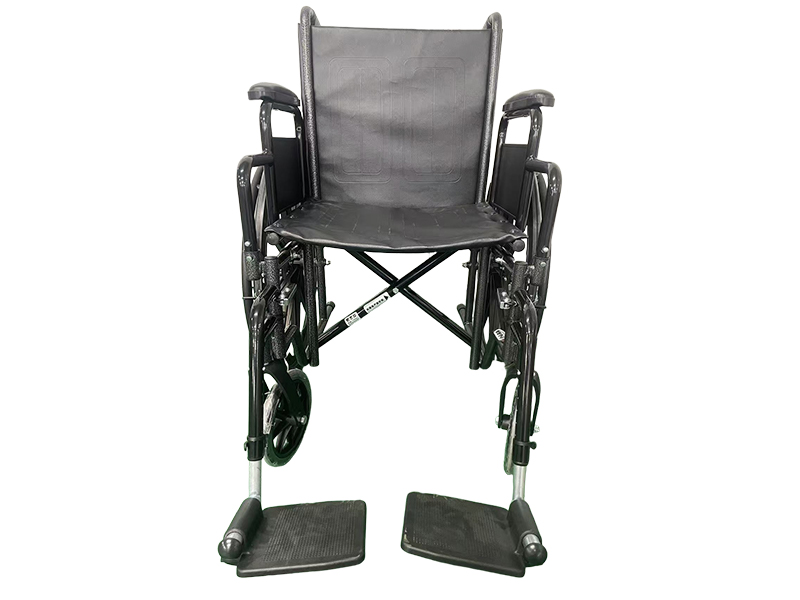

1、 Model: KR2 Iron Wheelchair

2、 Technical parameters

1.18 "model, 18" single center fork. Can be folded.

2. Seat width * Seat depth * Seat height 470 * 420 * 500mm

3. Maximum load-bearing capacity of 100kg

4. Dimensions: Length * Width * Height 1090 * 650 * 910mm

3、 Surface treatment

1. The frame is welded and sprayed with black background silver hammer pattern (color card number: Hongzhu EW-401T), the middle fork is welded and the side plate is sprayed with matte black, and the short handrail tube is welded and the movable leg is welded and sprayed with high gloss black.

2. The sliding rod is welded with chrome plating, and the pedal support is welded with chrome plating

3. Galvanized inner sleeve.

4、 Configuration Description

1. Detachable short armrest, movable leg (T93 adjustment mechanism).

2. 24 * 1-3/8 black nine fork plastic rear wheels, matched with PU black triangular hard tires. Comes with a black nine fork plastic handwheel.

3. 8 "aluminum front fork sandblasted black, 8 * 1 front wheel, black PVC tire.

4. Black leather flame-retardant seat cushion+back pad. The seat cushion has no water washing label, and the back cushion has no logo.

5. Black PP+PVC short armrest pad 140-M5

6. 18 "black ABS pedal. 18 "black leather leg straps.

7. K2 brake, electrophoretic black.

8. All plastic parts are black

5、 Packaging parameters

1. Net weight 18kg/unit

2. Outer box 800 * 290 * 930, 1 unit/box. Net weight 18kg, gross weight 20.5kg
