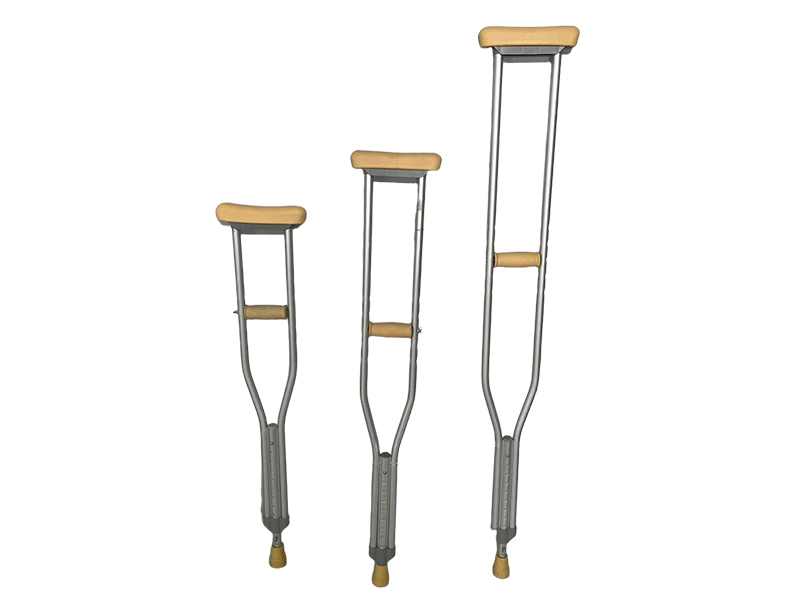

1、 Model: KR925L underarm crutch

2、 Performance:

1. The main support tube is made of high-strength aluminum alloy pipe, with a surface coated with silver oxide.

2. The shoulder support and hand grip are made of TPR polypropylene material, which is non slip, wear-resistant, comfortable and elastic. The hand grip position can be adjusted to 5 levels.

3. The foot pad is made of PVC plastic, which is non slip and wear-resistant.

4. The intermediate shaped tube and adjusting tube are positioned by snap fasteners, and the height can be adjusted in 9 levels.

3、 Technical parameters:

1. The vertical static load at the shoulder support is 80kg.

2. Large KR925L-L model, adjustable in height from 1300 to 1500, suitable for people with a height of 1.76 to 2.00M.

3. Medium KR925L-M model, height adjustable from 1090 to 1295; Suitable for people with a height of 1.55-1.76M.

4. Small KR925L-S model, adjustable in height from 910 to 1110, suitable for people with a height of 1.2-1.55M.

5. External dimensions

Large KR925L-L model: Length * Width * Height 205 * 45 * 1300

Medium KR925L-M model: Length * Width * Height 205 * 45 * 1090

Small KR925L-S model: length * width * height 205 * 45 * 910

4、 Usage:

1. Pull and adjust the tube according to height, select the appropriate height for the underarm crutch, and position the nine hole tube and adjustment tube through double-sided snap fasteners.

2. The foot pad should be replaced immediately after wear and tear.

3. Adjust the handle height appropriately.

5、 Packaging parameters:

1. Large KR925L-L model: Net weight 1.8kg per shipment. Outer box size; 1350 * 230 * 330, 5 pairs/box, net weight 9kg, gross weight 10kg.

2.  Medium KR925L-M model: Net weight 1.66kg/pay. Outer box size 1100 * 230 * 330, 5  Payment per box, net weight 8.3kg, gross weight 9kg.

3. Small KR925L-S model: Net weight of 1.5 kg per shipment. Outer box size 970 * 230 * 330,  5 packs/box, net weight 7.5kg, gross weight 8kg.
