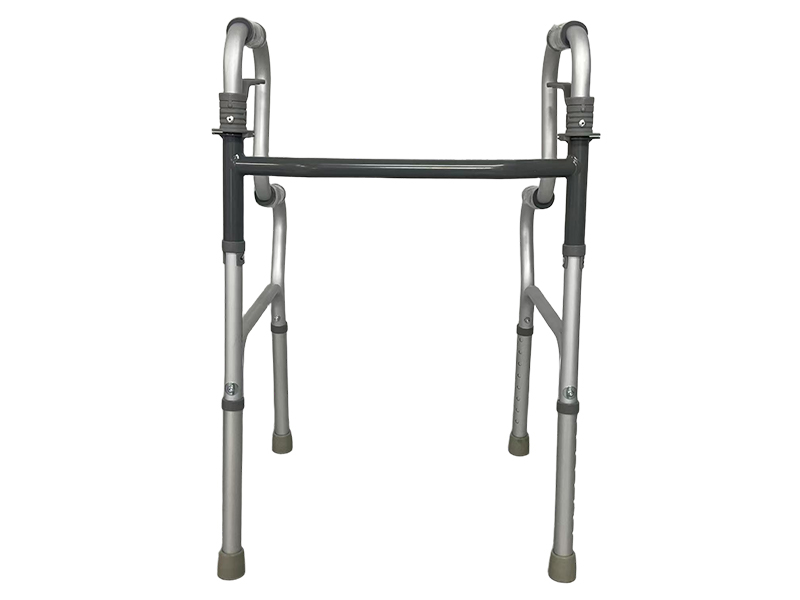

1、 Model: KR9632L trapezoidal walker

2、 Performance:

1. The frame is made of high-strength aluminum alloy material, with surface oxidation, lightweight and beautiful.

2. The H-shaped reinforced horizontal pipe is made of Q195 bright welded pipe

3. Foam grip, adjustable armrest height, non slip foot pad.

4. The bottom armrest facilitates the transition from a seated position to a standing position for users.

5. Foldable.

6. The walking method is fixed.

3、 Technical parameters:

1. The height can be adjusted to 825-1000mm in 8 levels.

2. The height of the bottom armrest can be adjusted to 570-745mm in 8 levels.

3. The vertical load at the left and right handles is 60kg each.

4. Dimensions: Length * Width * Height 570 * 460 * 825

5. Folding size: length * width * height 570 * 90 * 850

4、 Usage:

1. Frame unfolding: Open the armrest tubes to the outside until the fixing pins in the handles spring into the support plate holes, and then it can be used.

2. Adjust the height of the foot tube to position the buckle, making the grip height suitable for different groups of people.

3. Frame folding: Hold the handle in hand and fold the armrest tubes inward to complete the folding.

5、 Packaging parameters:

1. Net weight 2.55kg/set

2. Outer box size 585 * 320 * 860,    4 units/box, net weight 10.2 kg, gross weight 11.8 kg.
