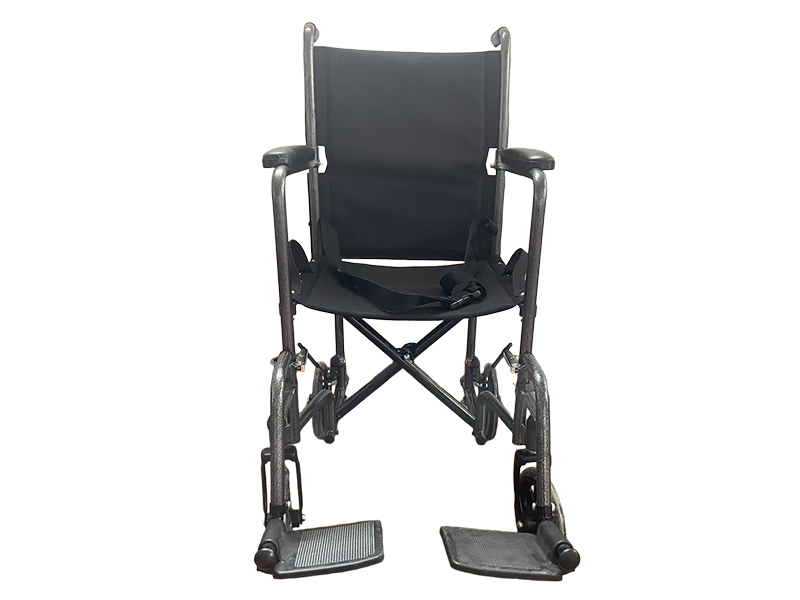

1、 Model: KR2000 Iron Wheelchair

2、 Technical parameters

1.18 "model, 19" single center fork. Can be folded.

2. Seat width * Seat depth * Seat height 400 * 430 * 500mm

3. Maximum load-bearing capacity of 100kg

4. Dimensions: Length * Width * Height 960 * 520 * 990mm

2、 Surface treatment

1. Frame+single fork+movable leg spray black background silver flower (color card number 8057)

2. The inner sleeve is galvanized, the pedal support is electrophoretic black, and the locking clamp is spray painted black.

3、 Configuration Description

1. Fixed hands, T93 movable feet, and backrest can be folded back.

2. 8 "front fork spray black, 8 * 1 front small wheel (black 8-fork PP spokes+PVC outer tire)

3. 8 * 1 rear wheel (black 8-spoke PP spokes+PVC outer tire)

4. 18 "650D black Oxford cloth seat cushion+back cushion+leg strap, 650D black Oxford cloth seat belt+hand strap. 227 type black leather long armrest pad, without protective skirt board

5. K4 brake, electrophoretic black. 16 "black ABS star shaped pedal.

6. All plastic parts are black

7. One hand tool wrench

4、 Packaging parameters

1. Net weight 12.3kg/set

2. Outer box 600 * 260 * 770, 1 unit/box. Net weight 12.3kg, gross weight 14.4kg
