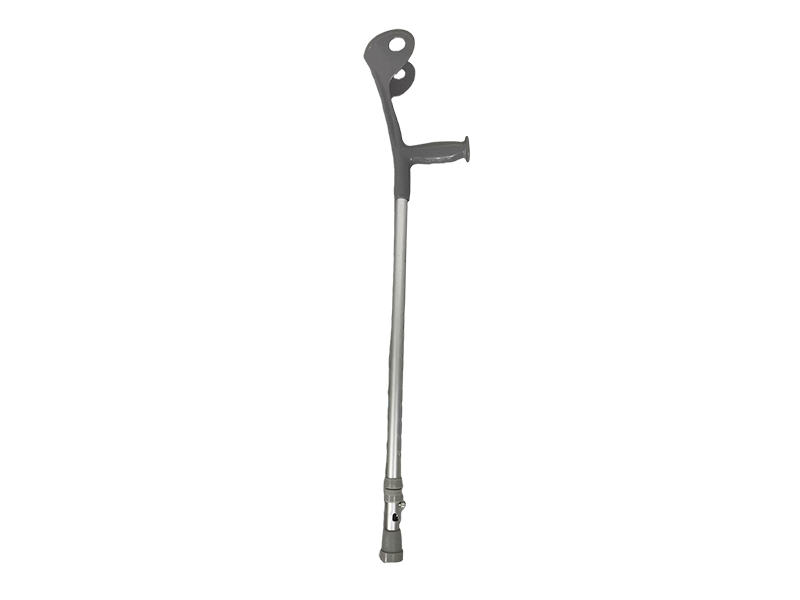

1、 Model: KR937L Two Section Elbow

2、 Performance:

1. The main support tube and regulating tube are made of high-strength aluminum alloy material, with a silver oxide surface, which is lightweight and beautiful.

2. Adopting reinforced PP elbow support and grip, integrated molding, in line with human body design; Comfortable and durable.

3. The foot pad is made of PVC material, which is non slip and wear-resistant.

3、 Technical parameters:

1. The diameter of the main support tube is Φ 22.2, with two sections and a height that can be adjusted in 10 levels from 960 to 1190 (with a grip of 740 to 970).

2. The vertical static load at the grip is 80kg.

3. Dimensions: Length * Width * Height 190 * 90 * 960

4、 Usage:

1. Pull and adjust the tube according to the height, select the appropriate height for the cane, and position the main support tube and adjustment tube through a snap fastener, using a locking ring for locking.

2. The foot pad should be replaced immediately after wear and tear.

5、 Packaging parameters:

1. Net weight 0.41 kg/piece

2. The outer box size is 940 * 300 * 360, with 20 pieces per box, a net weight of 8.2 kg, and a gross weight of 9.7 kg.
