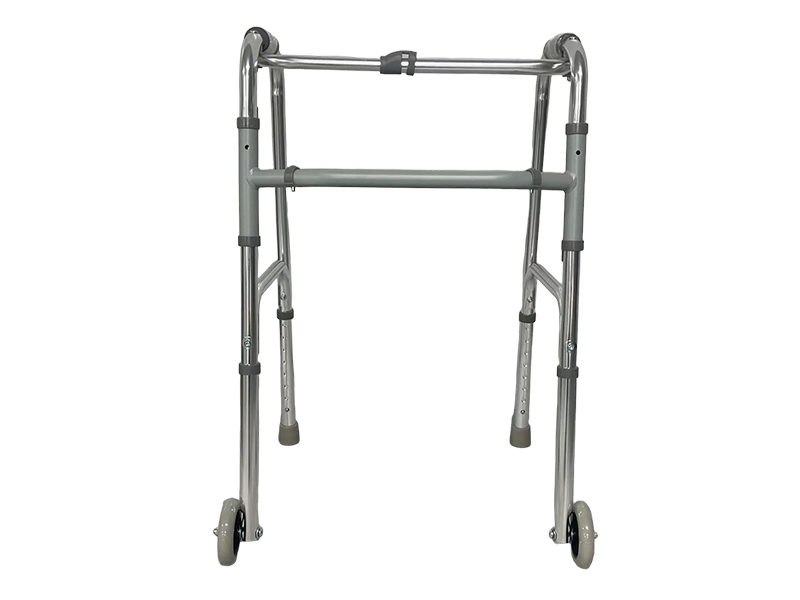

1、 Model: KR912L Wheel Assist

2、 Performance:

1. The frame is made of high-strength aluminum alloy material, with surface oxidation, lightweight and beautiful.

2. The H-shaped reinforced horizontal pipe is made of Q195 bright welded pipe

3. Foam grip, adjustable armrest height.

4.2Only100 front wheels, convenient for driving assistance.. PVC anti slip foot pad.

5. Foldable.

6. Walking mode: Cross and fixed for two purposes.

3、 Technical parameters:

1. The height can be adjusted in 7 levels, ranging from 810 to 960.

2. The vertical load at the left and right handles is 60kg each.

3.Wheel diameterφ100

4. Dimensions: Length * Width * Height 600 * 495 * 810

5. Folding size: length * width * height 605 * 95 * 830

4、 Usage:

1. Deployment of the walking aid: Hold the armrest tube and pull it outward to position the left and right telescopic tubes with built-in snap fasteners.

2. Adjust the height of the foot tube to position the buckle, making the grip height suitable for different groups of people.

3. The H-shaped reinforced horizontal tube is equipped with 2 C-shaped pins for users to choose between crossing or fixed walking modes.

4. Press the elastic buckle at the middle rubber sleeve of the left and right telescopic tubes, hold the armrest tube and fold it inward.

5、 Packaging parameters:

1. Net weight 2.54kg/set

2. Outer box size 540 * 310 * 820, 4 units/box, net weight 10.2kg, gross weight 11.4kg
